AWS WordPress Hosting — Series Overview

Experiment #4 — AWS EC2 + ALB + CloudFront + AWS WAF + Cognito + VPC Origin

1. Objective of the Experiment

This experiment evaluates a production-grade WordPress architecture built entirely on AWS, using:

  • CloudFront as the global edge and caching layer,
  • AWS WAF for controlled and predictable security,
  • Application Load Balancer (ALB) for clean routing and Cognito integration,
  • Amazon Cognito for identity-based admin access,
  • VPC Origin / CloudFront→VPC connectivity to ensure private, internal-only traffic,
  • EC2 as the WordPress origin.

The goal was to achieve the highest security level, with reasonable cost, predictable billing, and maximum compatibility with WordPress — without relying on Cloudflare or external ZTNA providers.

2. Context and Technical Constraints

Architectural Motivation

Previous experiments revealed gaps:

  • AWS-only setups (EC2 + WAF) were secure but too complex and expensive.
  • RDS + ElastiCache architectures were overkill and even slower for small sites.
  • Cloudflare Tunnel offered great security but too many operational drawbacks.

This experiment’s purpose was to build a balanced, modern, long-term architecture:

  • clear separation of layers,
  • private connectivity end-to-end,
  • predictable WAF costs,
  • clean Cognito integration,
  • strong security posture without tunnel fragility.

Security Requirements

  • EC2 and ALB must not be exposed to the public internet.
  • CloudFront must communicate with ALB via private connectivity (VPC Origin / PrivateLink).
  • Cognito should enforce authentication before accessing WordPress admin.
  • WAF should block malicious traffic globally before it reaches AWS.
  • All TLS handled by ACM with strong cipher policies.

Functional Requirements

  • Zero administrative friction for WordPress login.
  • Clean and predictable CloudFront behaviors.
  • Full support for dynamic WordPress features.
  • Reliability and ease of debugging.

Cost Requirements

  • ALB cost should be offset by simpler WAF behavior and fewer rules.
  • New AWS WAF flat-rate plan (Autumn 2025) should reduce unpredictability.
  • Total architecture target: $50–$60/month.

Maintenance Requirements

  • Keep the number of components reasonable and aligned with AWS best practices.
  • Minimize custom CloudFront functions or hacks.
  • Let Cognito handle identity-based protection instead of WAF tricks.

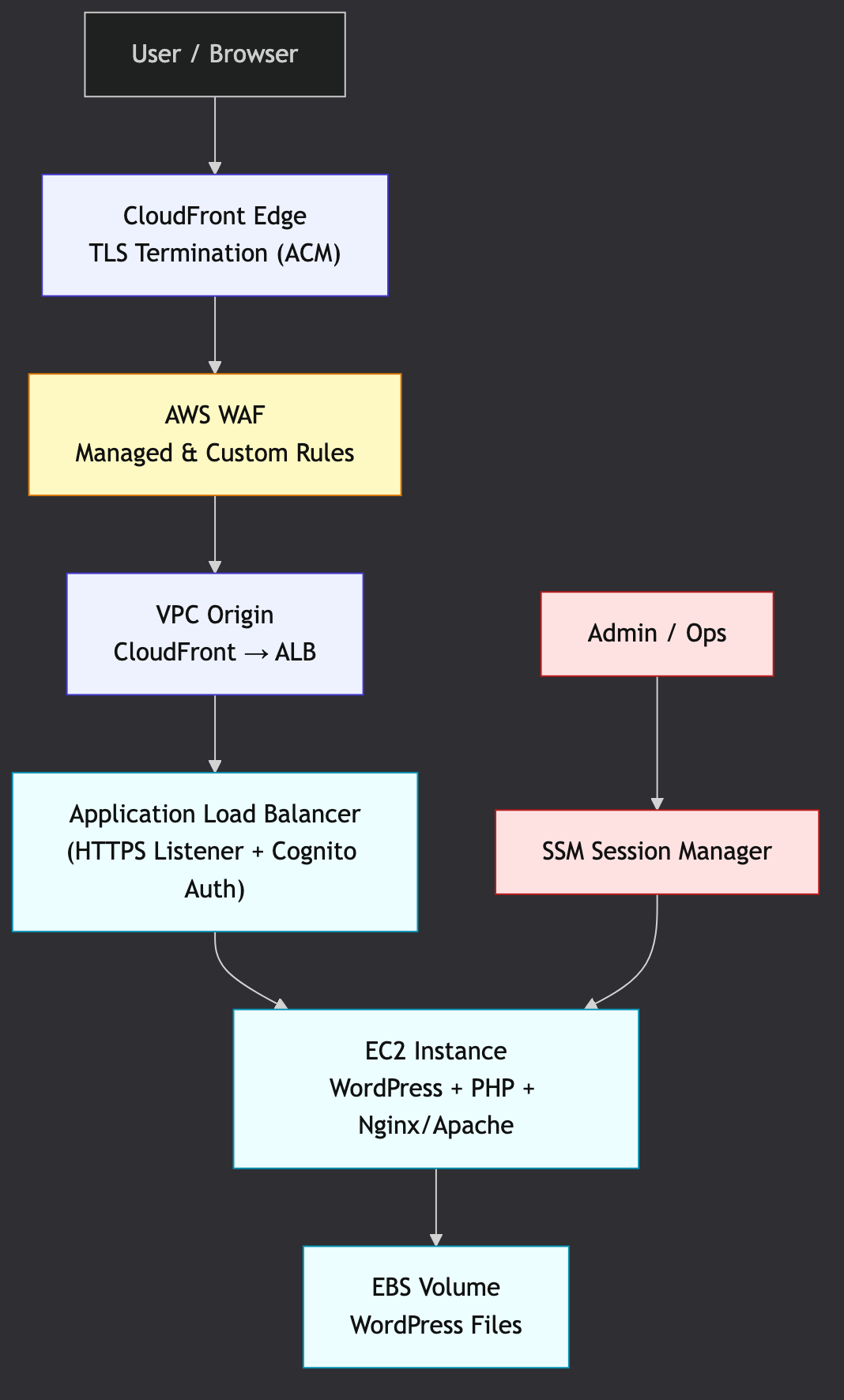

Final Architecture - CloudFront + ALB + Cognito (VPC origin)

flowchart TD
  User["User / Browser"] --> CF["CloudFront Edge\nTLS Termination (ACM)"]
  CF --> WAF["AWS WAF\nManaged & Custom Rules"]
  WAF --> VPCO["VPC Origin\nCloudFront → ALB"]
  VPCO --> ALB["Application Load Balancer\n(HTTPS Listener + Cognito Auth)"]
  ALB --> EC2["EC2 Instance\nWordPress + PHP + Nginx/Apache"]
  EC2 --> EBS["EBS Volume\nWordPress Files"]

  Admin["Admin / Ops"] --> SSM["SSM Session Manager"]
  SSM --> EC2

  %% Styles
  classDef edge fill:#eef2ff,stroke:#4338ca,stroke-width:1px,color:#111;
  classDef waf fill:#fef9c3,stroke:#d97706,stroke-width:1px,color:#111;
  classDef origin fill:#ecfeff,stroke:#0891b2,stroke-width:1px,color:#111;
  classDef mgmt fill:#fee2e2,stroke:#b91c1c,stroke-width:1px,color:#111;

  class CF,VPCO edge;
  class WAF waf;
  class ALB,EC2,EBS origin;
  class Admin,SSM mgmt;

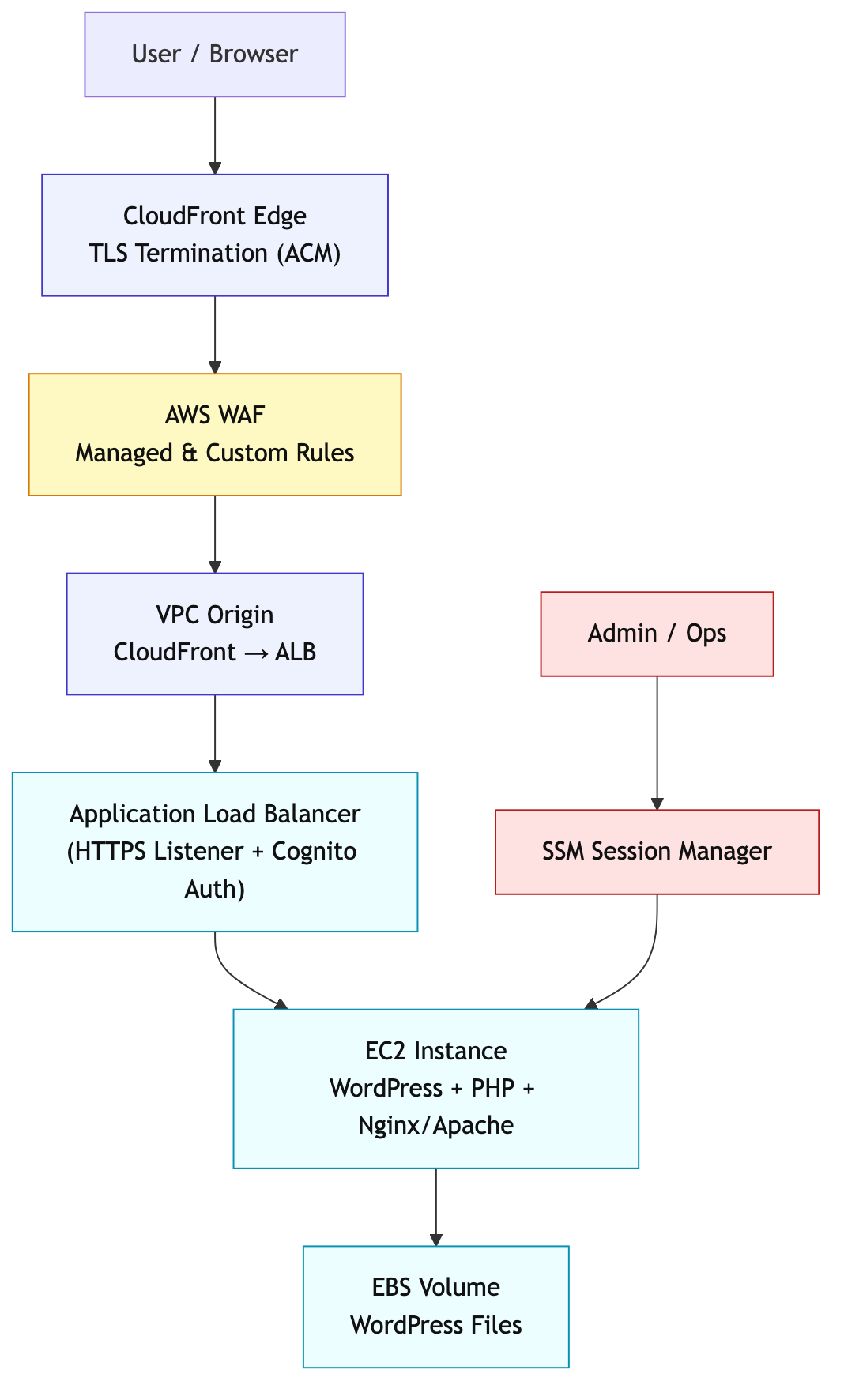

Figure A — Architecture - CloudFront + ALB + Cognito (VPC origin).

3. Architecture Tested

3.1. AWS Components

  • CloudFront (edge CDN + TLS termination)

    • Uses Origin Access Control (OAC).
    • Connects privately to ALB through CloudFront VPC Origin / PrivateLink.
    • No public exposure.

  • AWS WAF

    • Applied at CloudFront for global filtering.
    • Much simpler rule set thanks to ALB + Cognito.

  • Application Load Balancer (ALB)

    • Private subnets only.
    • Not publicly reachable.
    • Performs routing and Cognito authentication.

  • Cognito

    • Protects /wp-admin and /wp-login.php.
    • MFA, OAuth, or user pools supported.

  • VPC Endpoints

    • VPC Endpoint for CloudFront Origin (PrivateLink).
    • Optional S3 and SSM endpoints for full private operation.

  • EC2 (WordPress)

    • Private instance behind ALB only.
    • EBS stores WP files for easy instance replacement.

3.2. Infrastructure Security (AWS Architecture)

Security is significantly tightened through:

  • Private-only ALB: no public ingress at all.

  • CloudFront→ALB via VPC Origin / PrivateLink:

    • traffic never touches the public internet,
    • CloudFront communicates with ALB over an internal AWS backbone path.

  • OAC (Origin Access Control) ensures CloudFront is the only allowed caller.

  • AWS WAF at CloudFront filters threats before they even reach AWS networking layers.

  • Cognito at ALB adds identity-based admin protection.

  • SSM Session Manager for EC2 — no SSH exposed.

  • Strong Security Groups:

    • CloudFront endpoint → ALB
    • ALB → EC2
    • No lateral exposure.

This is one of the strongest WordPress security postures possible on AWS.

3.3. Application Security (WordPress Layer)

Cognito and WAF drastically simplify application-layer security:

1. Cognito authentication at ALB

  • Protects /wp-admin and /wp-login.php.
  • Brute-force attacks disappear entirely.
  • Works seamlessly with WordPress when done at ALB (not CloudFront).
  • Cleaner than Cloudflare Access or Lambda@Edge-based auth.

2. Minimal WAF rules

Since admin is protected by Cognito, WAF only needs to cover:

  • common exploits,
  • bot attacks,
  • rate limiting.

WAF cost is reduced and predictable.

3. Private-origin WordPress

Because ALB and EC2 are never public:

  • no origin IP leaks,
  • no direct scans,
  • no bypass attacks.

3.4. High-Level Traffic Flow

  1. Visitor connects to CloudFront over HTTPS.
  2. WAF applies global inspection.
  3. CloudFront uses Origin Access Control + VPC Origin to call the private ALB.
  4. ALB decides:
    • Protected path → Cognito authentication,
    • Public path → forward directly.
  5. ALB forwards traffic to the private EC2 instance.
  6. WordPress generates the response; CloudFront caches static assets.

3.5. Technical Observations

1. ALB dramatically simplifies CloudFront behavior

  • No more complicated regex rules.
  • Routing is clean and explicit.
  • WAF needs fewer exceptions.

2. Cognito integration is far easier at the ALB layer

  • No CloudFront functions required.
  • No header rewriting.
  • No complex Lambda@Edge logic.

3. VPC Origin adds important security

  • The connection between CloudFront and ALB is private, internal-only.
  • Public internet is bypassed entirely.
  • Reduces attack exposure to near-zero.

4. WAF costs become predictable

The AWS WAF flat-rate plan (late 2025) is a huge improvement:

  • fixed monthly cost,
  • simplified billing,
  • perfect for small-to-medium sites.

5. ALB is not a load balancer here

Even though it’s named “load balancer”:

  • we mainly use its routing and authentication features,
  • not load distribution.

6. More components means more complexity

Compared to Cloudflare, you manage:

  • CloudFront,
  • WAF,
  • ALB,
  • Cognito,
  • VPC Edges,
  • EC2.

But the resulting architecture is more robust, more predictable, and entirely under your control.

4. Results and Analysis

4.1. Pros

  • Most secure architecture tested — by a wide margin.
  • VPC Origin ensures CloudFront–ALB is entirely private.
  • Cognito at ALB provides clean, modern admin protection.
  • ALB drastically simplifies WAF rules and caching behaviors.
  • WAF cost predictable thanks to flat-rate plan.
  • Perfect compatibility with WordPress (no bot/CAPTCHA issues like Cloudflare).
  • No external dependencies; all services AWS-native.
  • Highly stable — no fragile tunnel like Cloudflare.

4.2. Cons

  • Higher complexity: requires deep AWS knowledge.
  • ALB costs ~$25/month, unavoidable.
  • Initial setup time is longer than Cloudflare.
  • More moving parts than a cloudflare-based setup.

4.3. Estimated Costs (2025)

Approximate:

  • EC2: $8–12
  • EBS: $1–3
  • CloudFront: $1–10
  • ALB: ~$25
  • WAF (flat-rate plan): ~$10–15
  • VPC Endpoints + logs: $3–5

Total: ~$50–$60/month

This is within the expected range for a secure, maintainable, professional-grade WordPress hosting environment.

5. Conclusion

This architecture — EC2 + ALB + CloudFront + WAF + Cognito + VPC Origin — offers the best combination of:

  • security,
  • performance,
  • predictable cost,
  • operational stability,
  • AWS-native maintainability,
  • WordPress compatibility,
  • absence of external dependencies.

Although it is not the simplest setup, it is by far the one with the strongest security posture and the cleanest long-term operational model.

For small but serious WordPress installations, it is the best architecture tested in the entire series.
